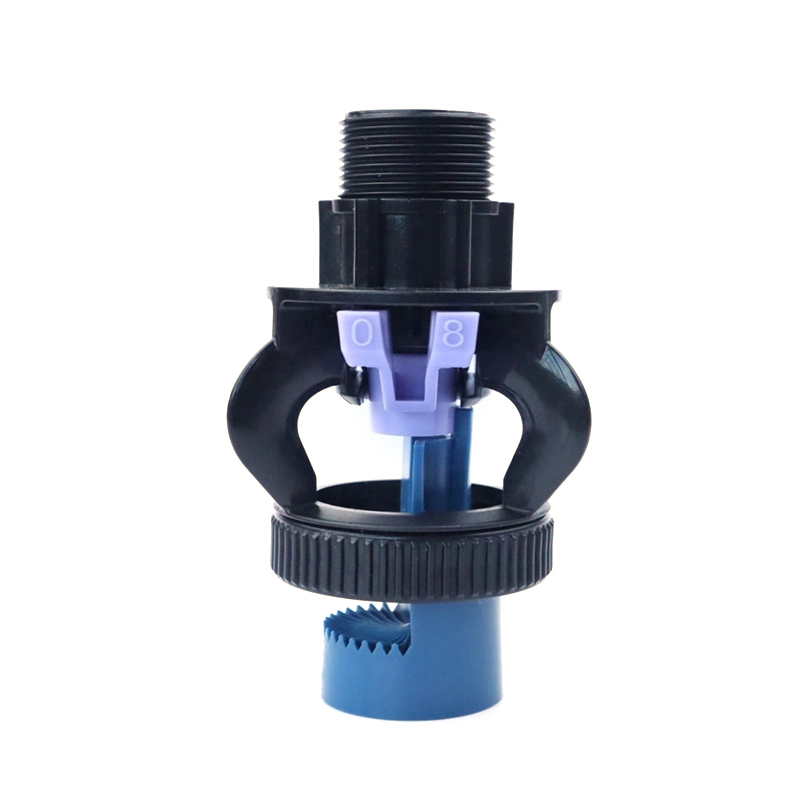

Ldn Part Circle Nozzle
Features
The Part-Circle nozzle is speci« cally designed to distribute water away from wheel tracks to minimize rut depth
① Can be used in conjunction with standard full circle LDNs or other sprinklers on the remainder of a pivot
② Distributes water in a 170° pattern with 17 streams at a 10° trajectory for minimum evaporative loss
Maximum radius of throw- up to 29 (8.8 m)
The Part-Circle nozzle is speci« cally designed to distribute water away from wheel tracks to minimize rut depth
① Can be used in conjunction with standard full circle LDNs or other sprinklers on the remainder of a pivot
② Distributes water in a 170° pattern with 17 streams at a 10° trajectory for minimum evaporative loss
Maximum radius of throw- up to 29 (8.8 m)
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameters
| Item# | 4112B | Material | Delrin/POM |
| Nozzle# | #6, #6.5, #7, #7.5.....#18 to choose from | Spray Diameter | 6–20 PSI |
| Flows | 0.28–21 GPM |
| LDN DESIGNCRITERIA | Part-Circle |
| Nozzle sizes | |
| Minimum | #6 3/32”(2.38 mm) |
| Maximum* | #18 9/32”(7.14 mm) |
| Flows | |
| Minimum | 0.62 gpm (141L/hr) |
| Maximum | 10.35 gpm(2351 L/hr) |
| Radius | |
| Minimum at 3 ft (0.91 m) | 9 ft(2.7 m) |
| Maximum at 3 ft (0.91 m) | 25 ft(7.6 m) |
| Maximum at 6 ft (1.83 m) | 11 ft(3.4 m) |
| Minimum at 9 ft (2.74 m) | 28 ft(8.5 m) |
| Maximum at 9 ft (2.74 m) | 13.5 ft(4.1 m) |
| Maximum at 9 ft (2.74 m) | 29 ft(8.8 m) |
| Pressure at Nozzle | |
| Minimum | 6 psi(0.41 bar) |
| Maximum | 15 psi(1.03 bar) |
UP3 nozzle
Low drift performance
The deflector design creates heavier, more controlled droplets, which reduces wind drift and keeps water on the crop.
